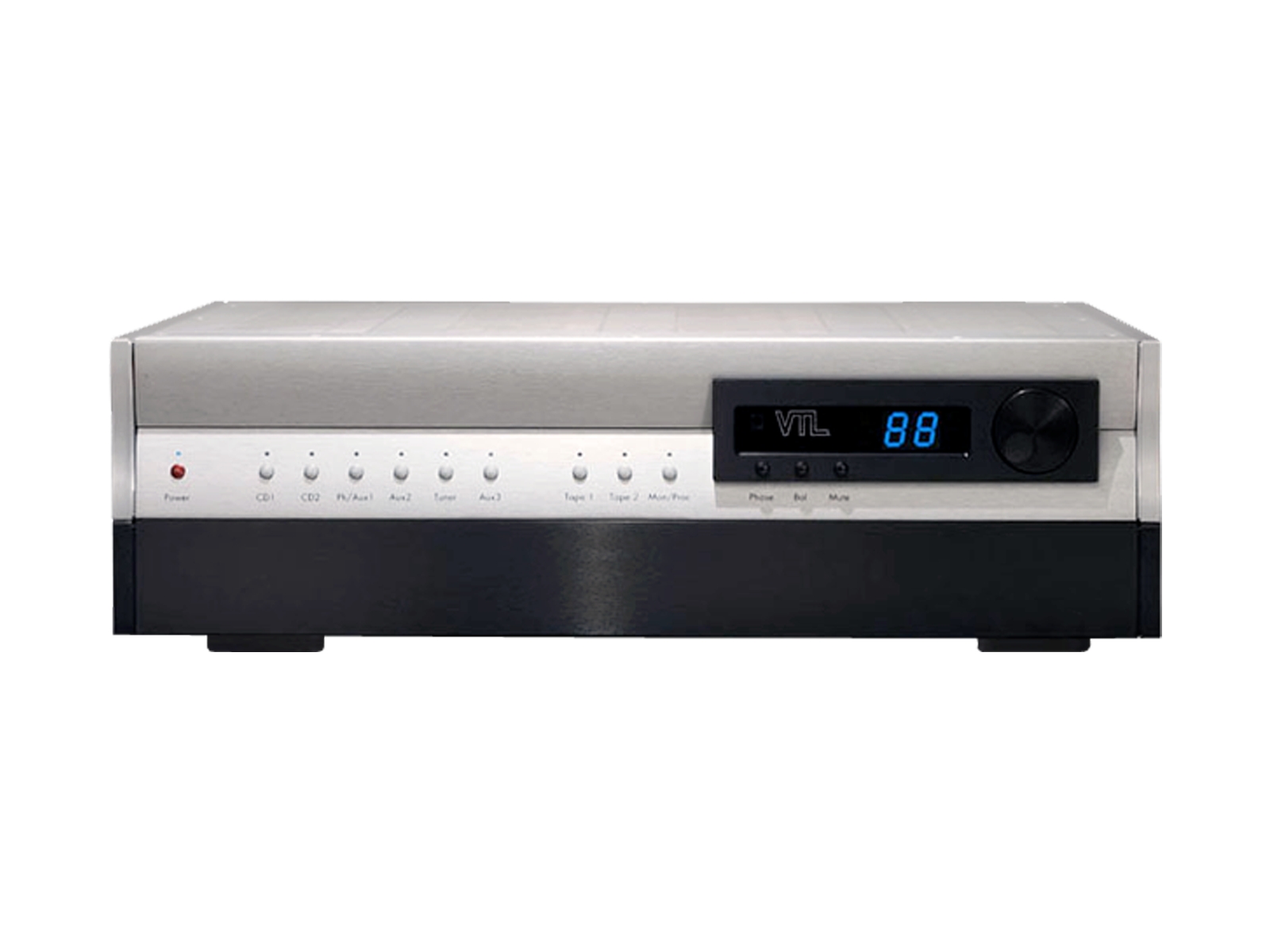

A VTL TL-6.5 Signature Series II előerősítő tesztje innen tölthető le PDF formátumban.
| acuum Tube Complement | 2 x 12AU7 |
| Inputs | 3 pairs balanced/XLR or RCA single-ended, 5 pairs single-ended/RCA |
| Outputs | 1 pair balanced out, 2 pairs single-ended RCA out, 2 pairs single-ended RCA buffered Tape Out |
| Remote control functions | Power, Source Select, Volume up/down, Mute, Fade, Balance Control, Phase Reverse |
| Gain | Balanced in and Balanced out: 19.2 dB, Single-ended in and Balanced out: 19.2 dB Balanced in and Single-ended out: 13.2 dB, Single-ended in and Single-ended out: 13.2 dB |
| Output impedance | 25Ω, Max 150Ω @ 10Hz |
| Input impedance | 50kΩ, 20kΩ min |
| Frequency Response +0 -1 dB | 1Hz – 200kHz (20Hz – 100kHz +0–1dB into 600Ω with 900pF 20’ interconnect cable) |
| Maximum Output Voltage <1% THD | 30V into 10kΩ or above (10Hz – 200kHz, +/-1dB) 10V into 600Ω |
| Channel separation | >100dB @ 1kHz (>80dB @ 20kHz) |
| Power consumption | 150W |
| Dimensions W x D x H | 17.5 x 17.5 x 6 inches (44.5 x 44.5 x 15.3 cm) |
| Weight | 48lbs (21.8Kg) unpacked, 55lbs (24.95Kg) fully packed |
